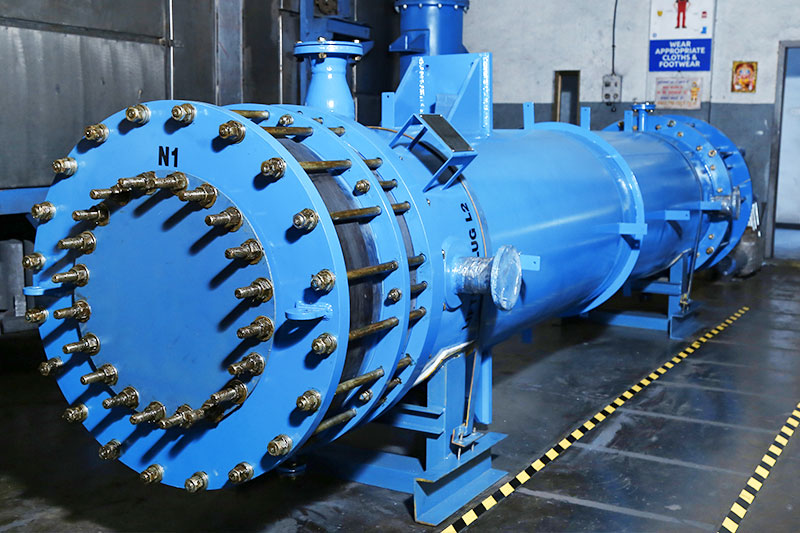

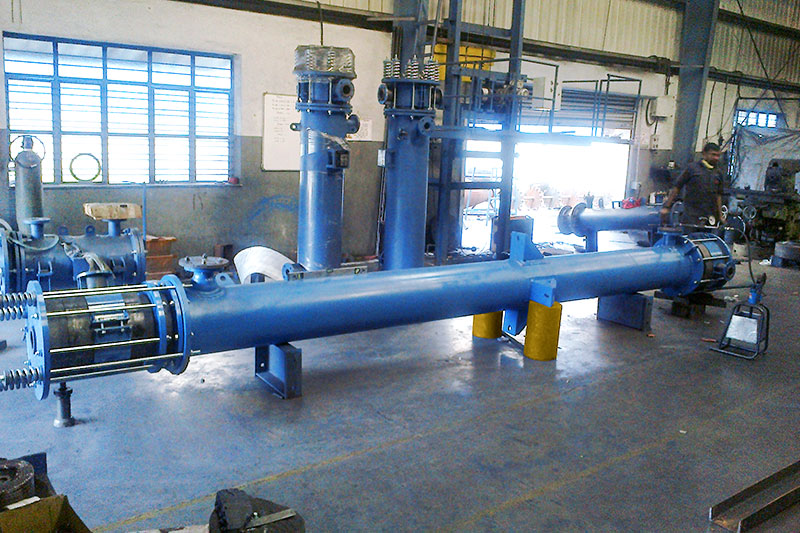

Graphite Shell & Tube Type Heat Exchangers
Functions
- Heat is transferred through the graphite tubes

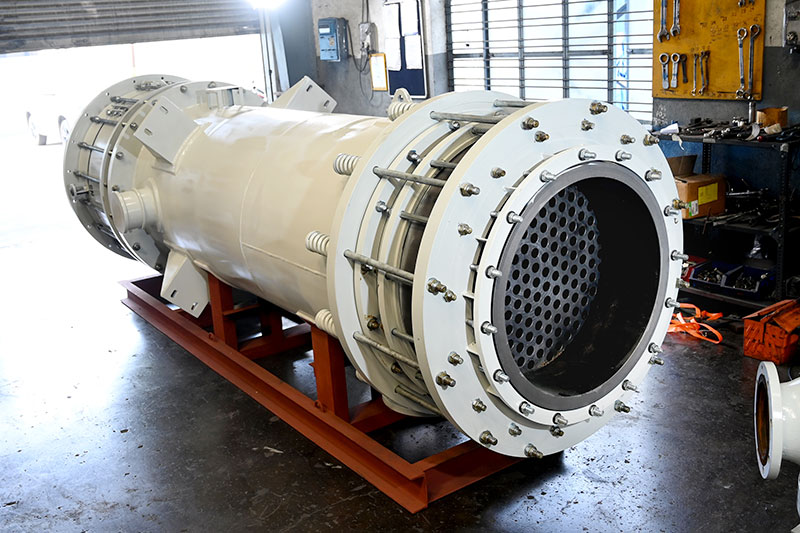

- Graphite tubes are encased in metallic shell & both ends are cemented with graphite tube sheets to form tube bundle
- Inlet & outlet end chambers can be designed as per the process requirements

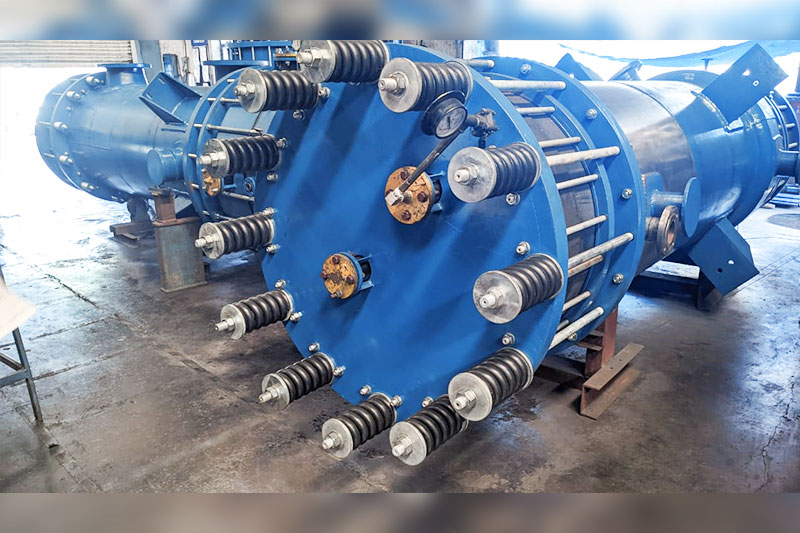

- Differential coefficient of thermal expansion is taken care with the tightening springs
Applications
- Cooling and heating of corrosive media
- Forced circulation, natural circulation and falling-film absorbers & evaporators
- Condensers & Re-boilers
Advantages
- High Corrosion resistance to many corrosive fluids
- High thermal efficiency
- Robust design
- Ease of maintenance
Features
- 1 Sq.met to 500 Sq.met
- Can be mounted Vertically or Horizontally
- Multi Pass arrangement on process side is possible
